Creative-Tube flexible conduit, Jute RN06 fabric covering, diameter 16 mm

NG16RN06

New Lighting Accessory Products

Available

$25.00

- +

Creative-Tube is much more than just a fabric-covered conduit!

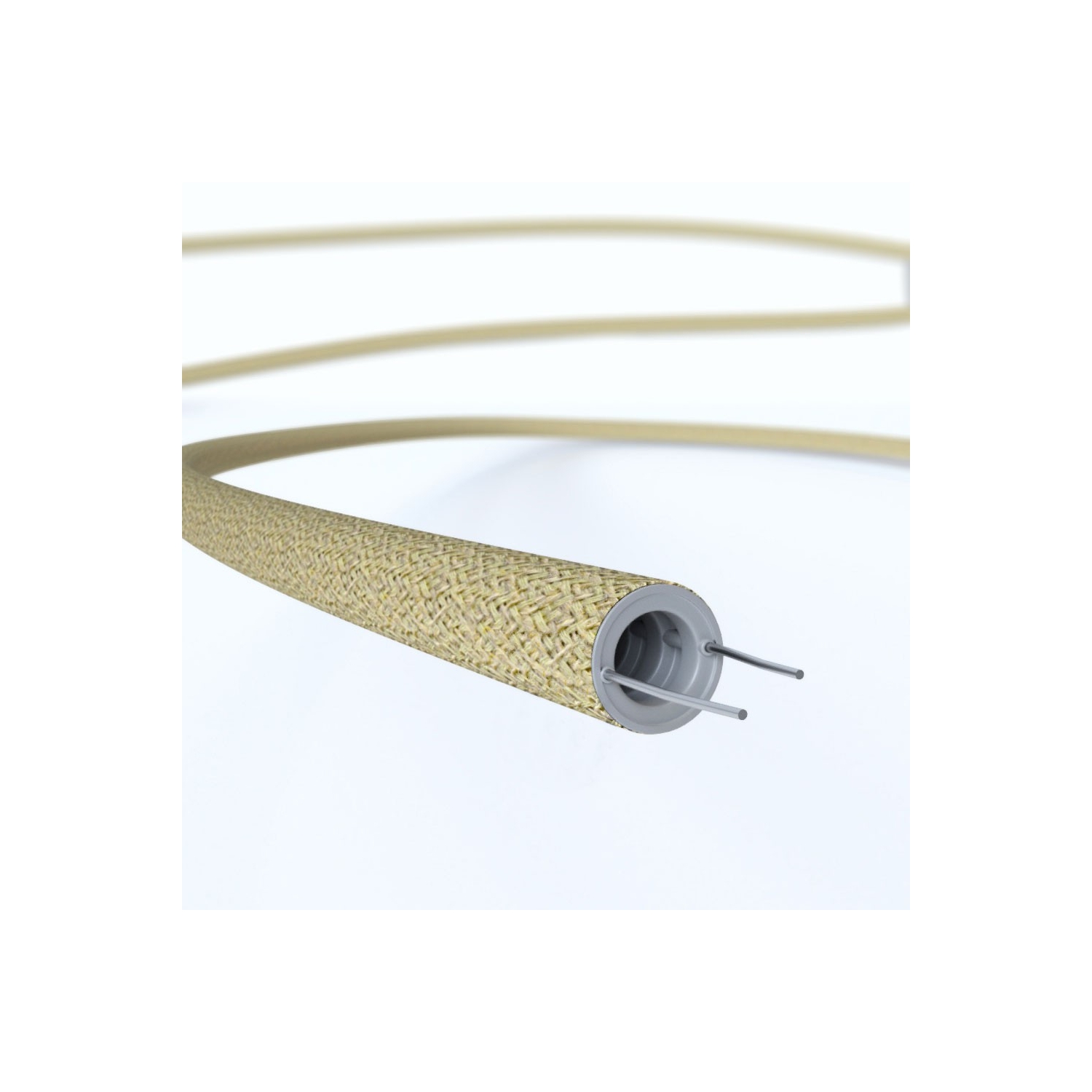

In fact, thanks to the metal filaments that run throughout it's entire length, Creative-Tube can assume and maintain any shape you give it. The only limit to Creative-Tube applications and uses will be your imagination!

In the 16 mm size Jute fabric covered, Creative-Tube is perfect to bring shapes and colors to your lighting ideas.

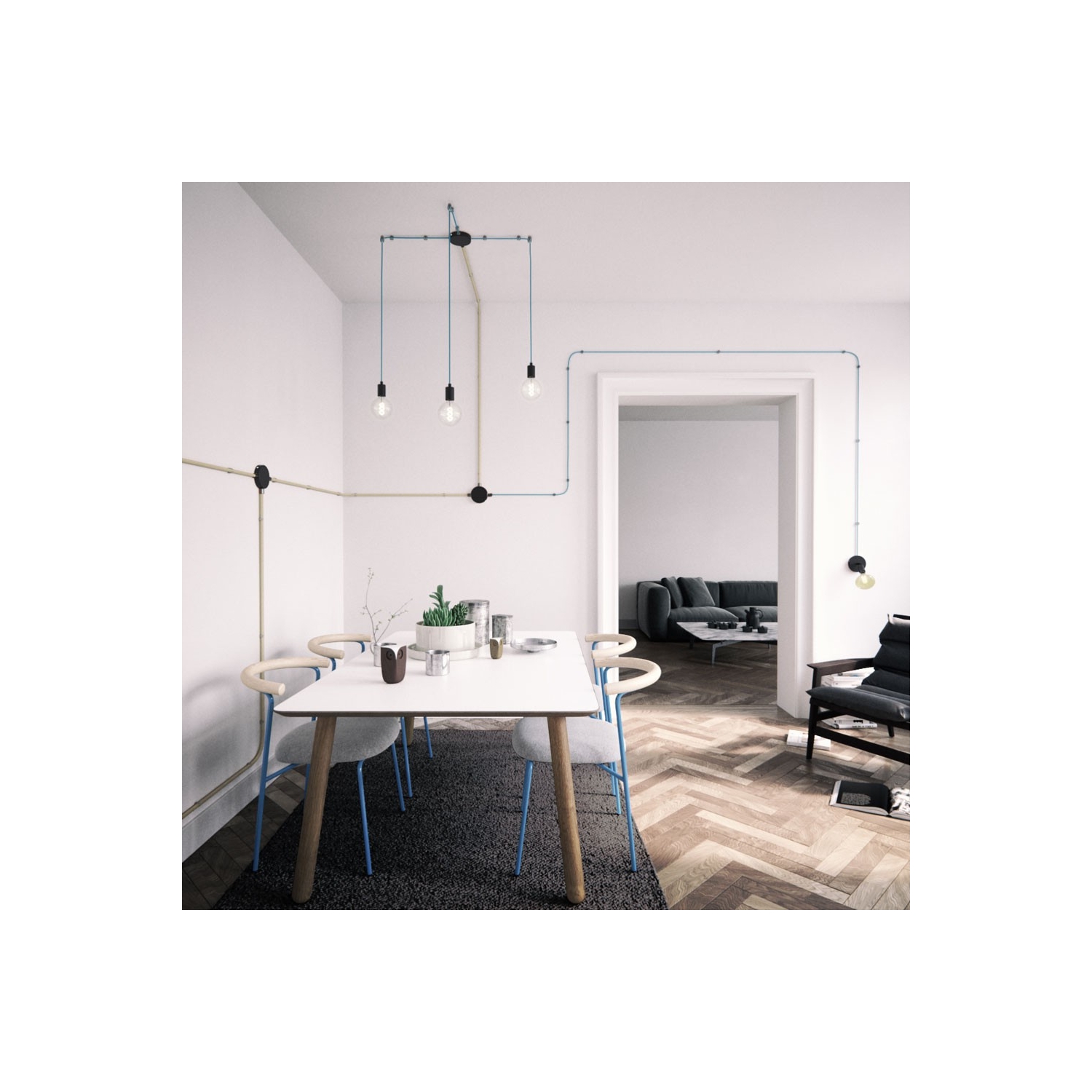

Combining our collection of special accessories, available in 4 metal finishes, you can connect almost every kind of lamp holder and bulb from our catalogue. Just bend Creative Tube to the desired shape and let it enlight your home!

You can use Creative-Tubes for exterior walls. Their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321 and it is IMQ certified.

Creative-Tube is sold per meter, multiple orders will be delivered in one piece up to a maximum of 50 meters.

Don't find the Creative-Tube colour you want? Contact us: we can make it for you!

More details


More info

Classification No: 3321
Crushing resistance: >750N on 5 cm at 20°C
Schock resistance: (-15°C) after applying 2 kg mass hammer
Operating temperature: -5°C to +60°C
Resistance to flame propagation: self-estinguishing VO
Dielectric strength: <2000v at="" 50hz="" br=""> Insulation resistance: >100 mega ohm

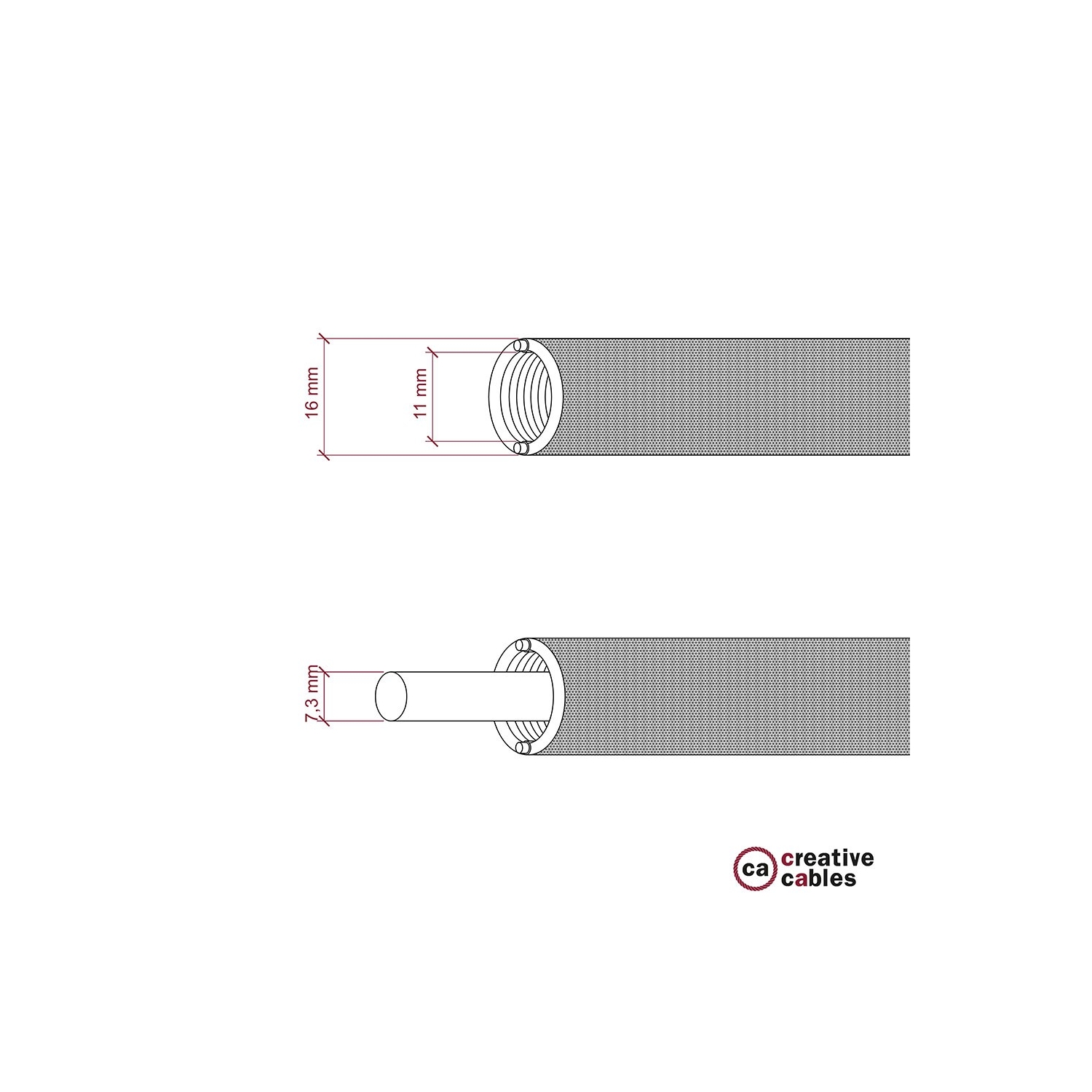

Diameter: 16 mm
Color: Jute RN06

According to the CEI 64-8 standard, to guarantee the cable removal, the maximum useful cross-section of cables inside the Creative-Tube can be 7 mm for a Tube up to 10 metres long. Up to 20 metres, the maximum thickness will be 6 mm.

Due to the shape of Creative-Tube, once positioned it is necessary to cut the pieces of metal filament that protrude from the limit of the pipe, before you can install the accessories or connect it to the junction box.


Data sheet
PatternSolid
MaincolorBrown
FabricJute
StyleRound
Download datasheet
